Digital refractometer 0–95% Brix
REF 4817

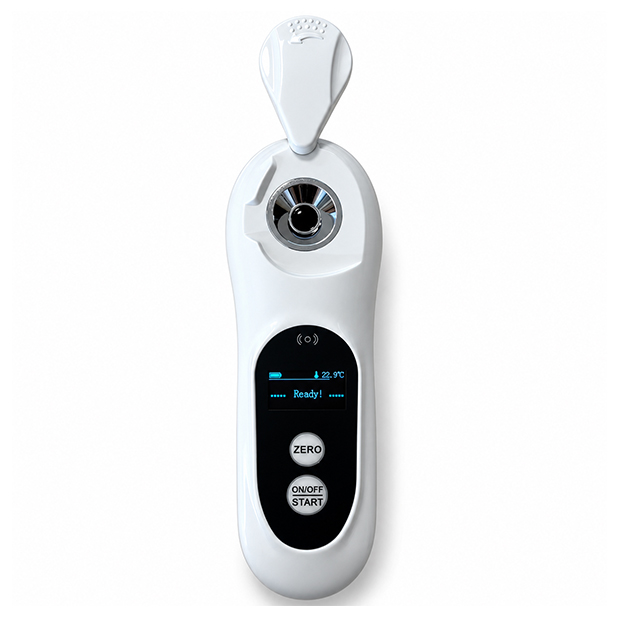

This digital refractometer quickly measures the sugar concentration of a liquid, expressed in % Brix, as well as its refractive index. Its wide measuring range of 0 to 95% Brix is particularly suitable for checking fruit juices, syrups, jams, compotes, honey and other food preparations.

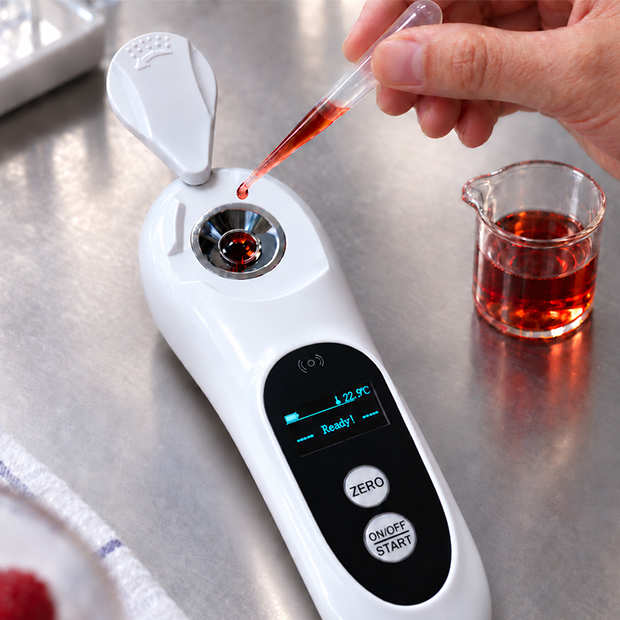

Simply place 3 to 5 drops of the sample on the measuring area and close the cover plate. The result is displayed in approximately 3 seconds. Automatic temperature compensation contributes to reliable measurements when the sample temperature varies.

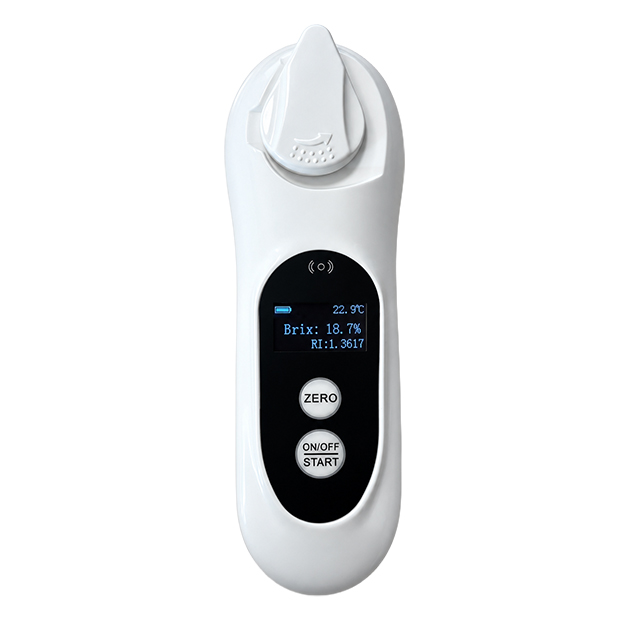

The digital display simultaneously shows the value in % Brix, the refractive index and the temperature. The instrument features zero-point calibration using pure water and an IP65 protection rating. It operates with two supplied AAA batteries and comes with the accessories required for its use and maintenance.
Non-contractual visuals and technical data, subject to change without notice
DOCUMENTATIONS
TECHNICAL DATA
- Measuring range: 0 to 95% Brix
- Accuracy: ±0.3% Brix / ±1°C
- Resolution: 0.1% Brix / 0.1°C
- Automatic temperature compensation: 10 to 80°C
- Operating temperature: 10 to 40°C
- Sample volume: approximately 0.5 ml, equivalent to 3 to 5 drops
- Measurement time: approximately 3 seconds
- Zero-point calibration using pure water
- Protection rating: IP65

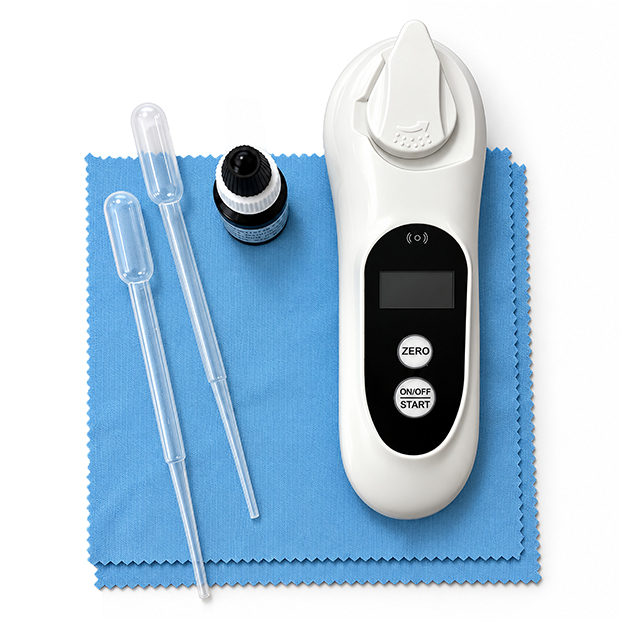

- 2 LR03 AAA batteries and 1 screwdriver
- 2 pipettes and 2 fabric cleaning cloths
- 1 empty bottle for the calibration solution
FEATURES
LOGISTIC INFORMATION

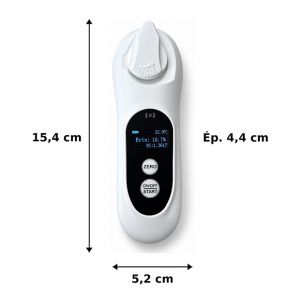

154 × 52 × 44 mm
Product weight
120 g (without batteries)
Packaging
Box, 188 × 92 × 62 mm, 350 g
REGULATIONS
- Measuring range: 0 to 95% Brix
- Accuracy: ±0.3% Brix / ±1°C
- Resolution: 0.1% Brix / 0.1°C
- Automatic temperature compensation: 10 to 80°C
- Operating temperature: 10 to 40°C
- Sample volume: approximately 0.5 ml, equivalent to 3 to 5 drops
- Measurement time: approximately 3 seconds
- Zero-point calibration using pure water
- Protection rating: IP65
- 2 LR03 AAA batteries and 1 screwdriver
- 2 pipettes and 2 fabric cleaning cloths
- 1 empty bottle for the calibration solution
154 × 52 × 44 mm
Product weight
120 g (without batteries)
Packaging
Box, 188 × 92 × 62 mm, 350 g
